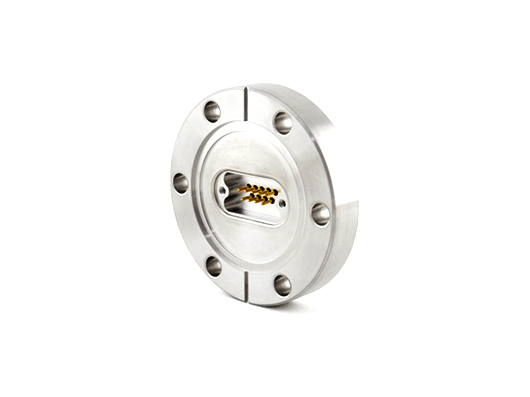

D-sub 9-way Electrical Feedthrough

VF9D-40CF

D-sub 9-way feedthrough on a DN40 CF flange (70 mm OD). Individual glass-ceramic compression seals and bakeable to 250°C.

Overview

• 9-way feedthrough on a DN40 CF flange (70mm OD) suitable for use in UHV
• Suitable for use to 1.3 x 10^-10 mBar (1 x 10^-10 Torr)
• Male to male connection
• Bakeable to 250°C
• 1.01mm gold plated pins
• Rating. 500V, 5 A per pin (max 20% of pins)
